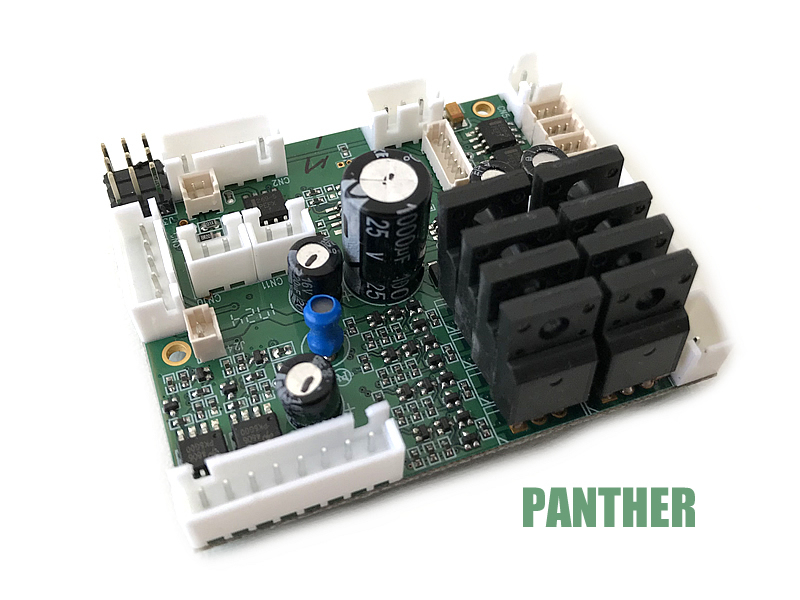

Clark Model TK22A Tank Controller (Panther Sound Set)
TK22A series controller is the successor of successful TK22 series, uses 4-CH conventional PWM or 10-CH S.BUS RC system to control R/C tank's forward/backward movement, sharp turning, pivoting, turret rotation and gun barrel evaluation at variable speed.
OVERVIEW
- Ultrasonic ESC*3 for two track motor and turret rotation
- Ultra Low turn-on resistance FET for track motor ESC
- 22KHz, 8-bit high quality sound with digital sound mixer
- Maximum of 5 channel of sound track, main gun, machine gun, turret rotate, gun barrel elevation and engine sound can be generated at the same time
- 3W sound output power
- 0.8A BEC
- EPM*2 for gun elevation(EPM1) and turret rotation/gun traverses(EPM2)
- Wide operating voltage rage, from 7.2 to 12V, support 3S Li-Po battery
- Support air-soft gun with sound synchronization
- Support TAMIYA and HL IR battle unit and format
- Support RealRecoil servo port
- Safety shutoff prevents unwanted movement while signal lost
- Auto R/C signal detection
- Miniature design(60mm X 50mm X 20mm) for 1/25~1/16 R/C Tank

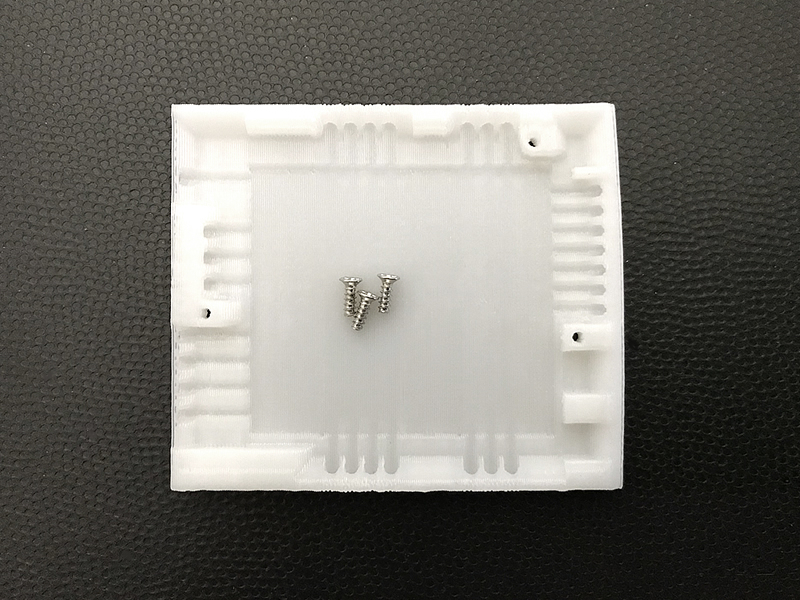

- 3D Printed mounting plate now included.
Sounds Include:
Engine: Maybach HL 230 P30 with Flammen Vernichter Muffle
Main Armament: 7.5 cm KwK 40
Secondary Armament: Maschinengewehr 34
IMPORTANT: PLEASE READ BEFORE PURCHASE
This product is not for beginners -THIS IS NOT A 100% PLUG AND PLAY BOARD
For complete installation and configuration instructions, please visit the Official Clark Model TK22 Information Page
